2.Working Range:

Over 30 meters ( 98 feet ) without obstacle

3.Receiver:

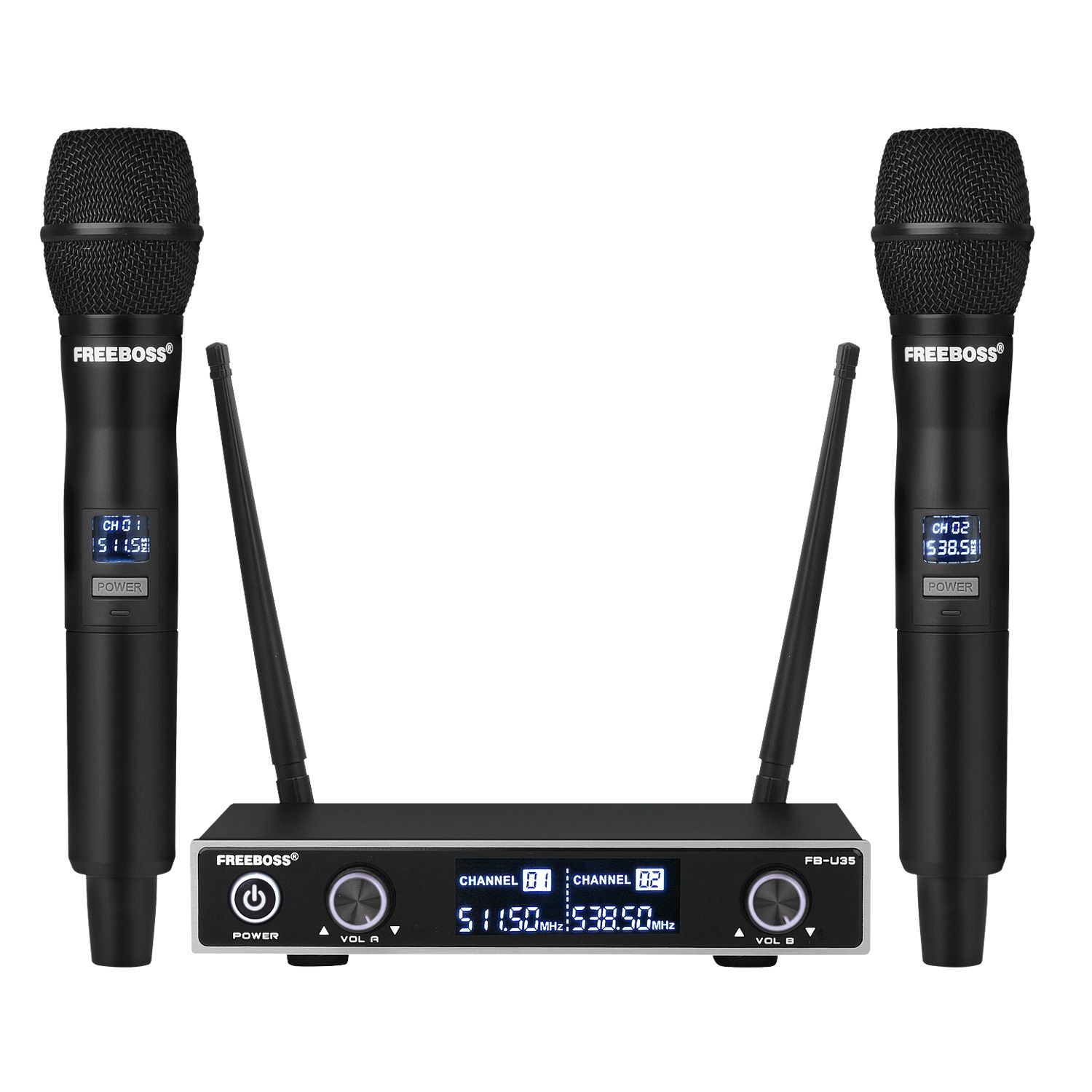

Receiver front panel function:

1.) Power Switch:

A)  Link the power adapter to receiver power socket,then link the power adapter to 220V power.

B)  Press the receiver power button,power indicator is on,the receiver is on "working" status.

2.) RF Led Indictaor

when the receiver is on "working" status,

A) Microphone A/B no power, left/right RF light is off

B) Microphone A/B is on, left/right RF light is on

3) Volume Knob:

clockwise: volume from low to high

anticlockwise: volume from high to low.

1) Mic A and Mic B XLR socket:

A.) Need XLR cable:(not included in the package)

B.) From the socket,

a) you can link the receiver to audio mixer

b) then you can controld the microphone A  or microphone B separately.

2)Mix out socket:

A.) Need 6.35mm plug cable.(included in the package)

B.) From the socket,

a) you can connect the receiver to amplifer/speaker,etc.

b) you only can control the microphone A and B together.

4.Power Adapt:

1) EU PLUG
2) US PLUG
3) PLUG adapter

5.Transmitter:

• Capsule: Professional Audio Dynamic Capsul

• Transmitting power:<=10dbm

• Frequency stabilization:+-0.005%

• Battery Two-pieces battery of 1.5

Material:

6.Application:

7.Packing Pictures:

1) Microphone                   2pcs

8.Troubleshooting:

Problem:

No Sound; RF light(s) not glowing.

Solution:

1. Make sure the transmitter POWER switch is ON and the receiver is plugged into a power source.

2. Check battery

3. Check receiver squelch setting

4. Check receiver antenna connection(s)

5. Make sure antennas are in line of sight of transmitter

Problem:

No sound; RF lights glowing.

Solution:

1. Turn up receiver audio VOLUME control.

2. Check for proper connection between receiver and audio mixer unit.

Problem:

Received signal is noisy or contains extraneous sounds with transmitter on.

Solution:

1. Check battery.

2. Remove local sources of RF interference.

3. If using a guitar or other instrument, check connection. Two transmitters may be operating on the same frequency. Locate and turn one off.

4. Signal may be too weak, Reposition antennas. If possible, move them closer to transmitter.

Problem:

Noise from receiver with transmitter off.

Solution:

1. Adjust receiver squelch control.

2. Remove local sources or RF interference.

3. Reposition receiver or antennas.

Problem:

Momentary loss of sound as transmitter is moved around performing area.

Solution:

1. Reposition receiver and perform another “walkthrough” test and observe the RF indications.

2. If audio dropouts persist, mark these “dead sopts” in performing area and avoid them during performance.

9.Specifications:

Squelch_Contro: Noise Lock

Operating Range:50min open Ares.

Frequency Deviation:±18KHz

Frequency Stability:±0.005%

S/N Ratio: ≥70db

Total Harmonic_Distortion: <0.5%(at 1 kHz)

Number of Channel: 2 Channels

Resonance Interfere Rate: ≥ 50db

False Image Interfere Rate: ≥ 50db

Receiver Power Supply: AC 110-220V

Transmitter Power Supply: 2*  1.5V Batteries.

Transmit Power: ≤10mW;

Frequency Range: Fixed UHF Band

Output Type: Separated or Mixed Output

Please Note:

                       Please confirm the frequency is ok for you.
